A Unique Combination of Comfort and Structural Integrity

The VISION™ Platform Chair is the ideal solution for your stadium and arena seating! It is made from a combination of blow-molded plastic components and cast aluminum brackets. The seat pan is fully supported by brackets that nest within the pan for extra durability. the VISION™ Platform Chair maintains its seat pan width from front to back to make for a comfortable experience for patrons of all shapes and sizes.


The VISION™ Platform Chair is an ideal choice for your Wide Deck Premier Platform and available in three types of fold down operations (manual, semi-manual with assisted release, semi-automatic) to accommodate your individual needs.

  • Front rendering of Interkal VISION Platform Chair in semi-manual operation, with armrests.

    Slide title

    Write your caption here
    Button
  • Back rendering of Interkal VISION Platform Chair in semi-manual operation, with armrests.

    Slide title

    Write your caption here
    Button

FOLD DOWN OPERATIONS

Manual Operation

The manual operation of the VISION Platform Chairs allows you to lower small banks of chairs by lifting them up yourself.

Manual operation is the simplest, and is done completely by hand. The first row of VISION chairs are typically manual operation.

Semi-Manual Operation

Semi-Manual operation relies on a gas strut and assisted release. This is very user-friendly to raise larger chair banks

Semi-manual includes gas struts to assist with the opening and closing of the rows. With the assisted release, the struts help lower the chairs slowly and softly, greatly extending chair life.

Semi-Automatic Operation

Semi-Automatic operation uses gas struts to lower the chair banks slowly and softly onto the telescopic system as it retracts

Semi-automatic includes gas struts to assist with the opening and closing of the rows. The semi-automatic system folds down rows as the telescopic system is retracted.

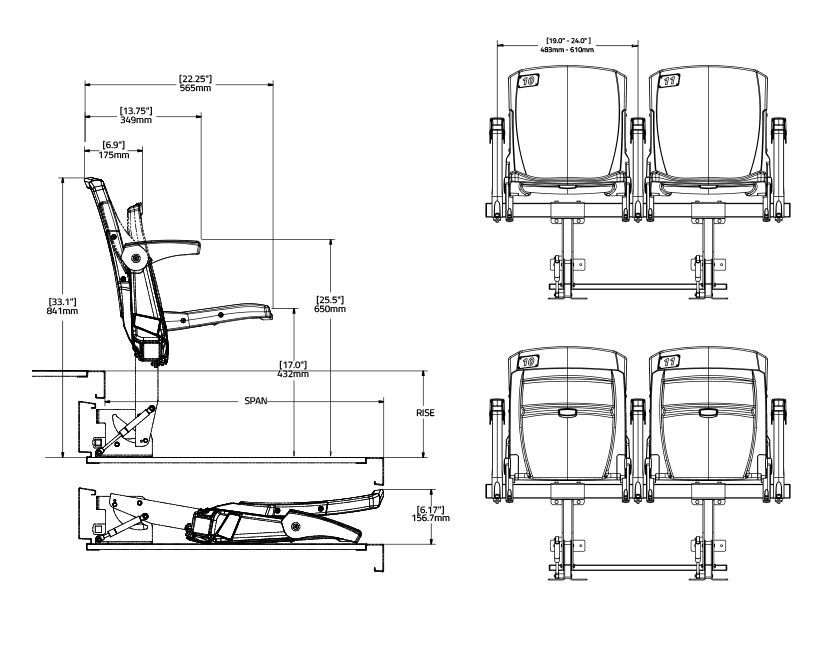

FEATURES & DIMENSIONS

  • Cup Holders*
  • Upholstered Seat and Back Onserts
  • ADA Easy Access Armrests
  • Seat Numbers and Row Letters
  • Tablet Arms available
  • 15 Standard Colors (UV Protected)
  • The VISION requires a minimum of 10.25" (260.35mm) rise
  • Available in 30", 32", and 33" (762mm, 813mm, and 838mm) row spacing
  • 19"- 24" (483mm - 610mm) wide seats available
  • 18" (457mm) wide seats available in an armless option

     * Minimum seat width of 20" (508mm) minimum is required

LITERATURE

SELECTED CASE STUDIES

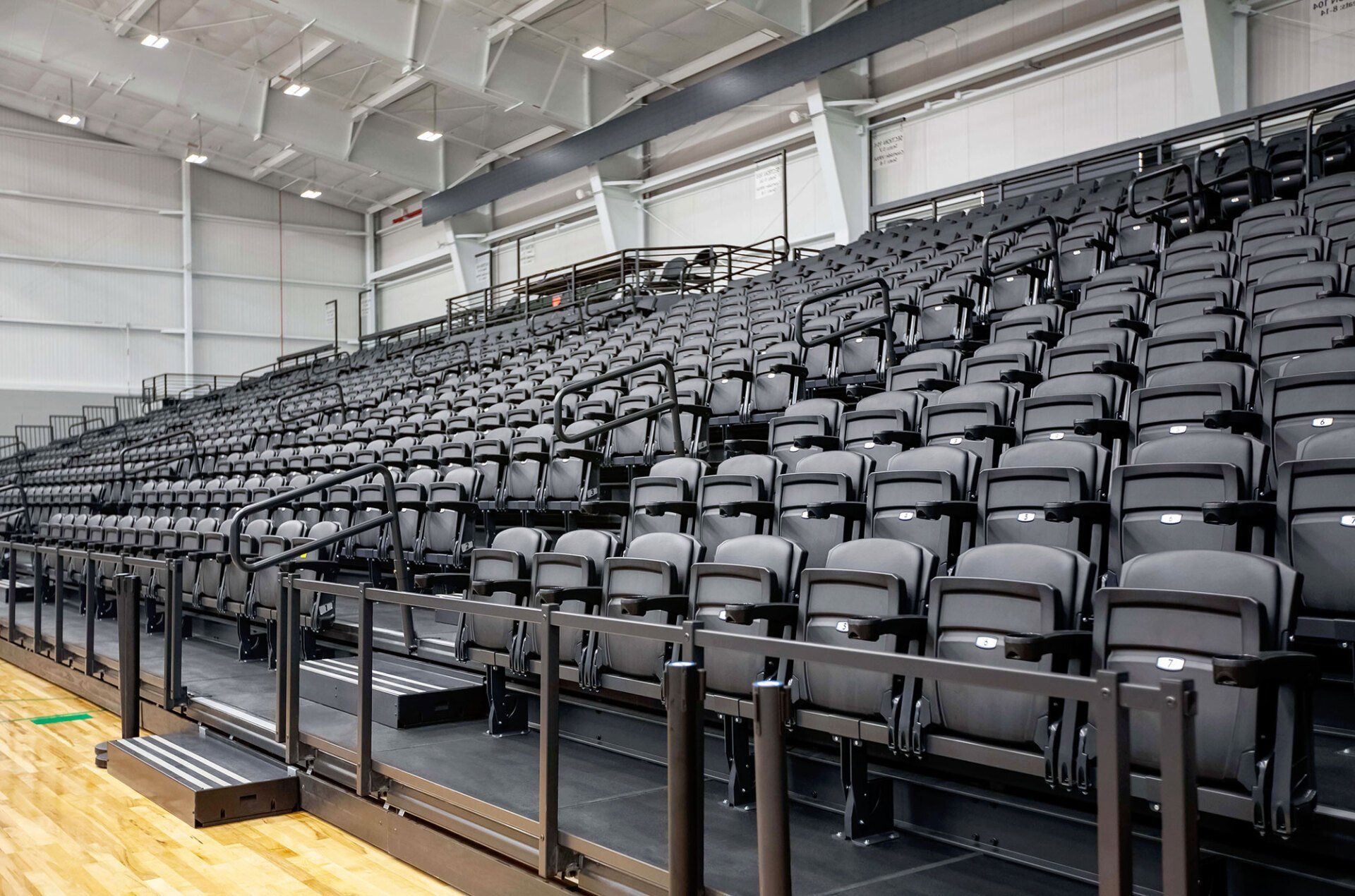

  • Wayne State University platform installation photo gallery

    • COLOR SELECTION

    Our wide variety of 15 standard colors are available for most Interkal seating types and vinyl curtains*.

    • Custom colors are available upon request.
    • For multi-color seat installations, it is critical to specify where each color applies.


    Color depictions will differ from actual color. Contact your local Interkal dealer to verify color selection and request a color sample.
